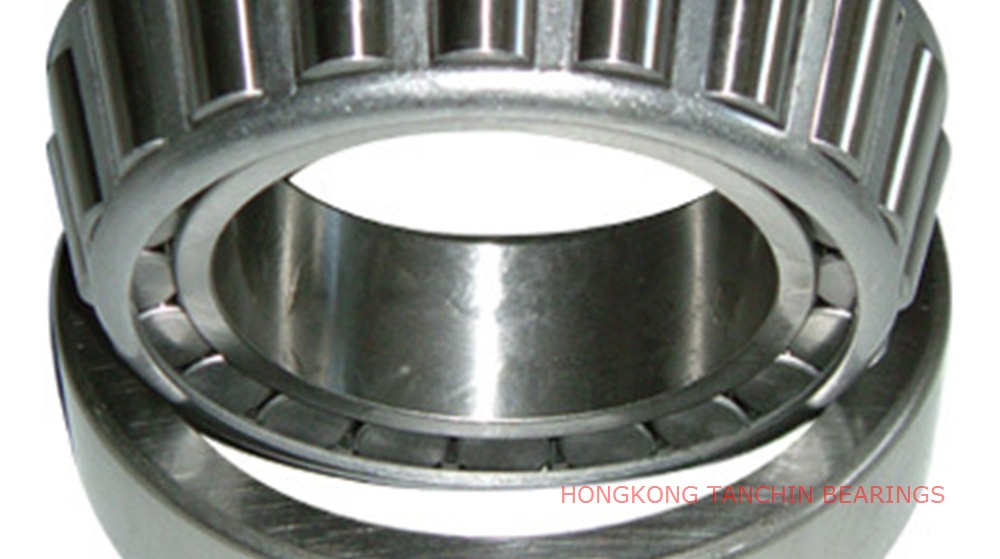

Timken 22168 - 22325 bearing

All our Timken 22168 - 22325 bearings ensure quality

Price :$1.08,please contact sales@tanchin.hk Timken 22168 - 22325

Series

22000

Cone Part Number

22168

Cup Part Number

22325

Design Units

Imperial

Bearing Weight

1.0000 lb
0.4000 Kg

Cage Type

Stamped Steel

D - Cup Outer Diameter

3.2500 in
82.550 mm

d - Cone Bore

1.6875 in
42.863 mm

B - Cone Width

0.7810 in
19.837 mm

C - Cup Width

0.5937 in
15.080 mm

T - Bearing Width

0.7812 in
19.842 mm

Z - Number of Rollers Per Row

18

R - Cone Backface "To Clear" Radius¹

0.090 in
2.290 mm

r - Cup Backface "To Clear" Radius²

0.060 in
1.52 mm

da - Cone Frontface Backing Diameter

1.91 in
48.51 mm

db - Cone Backface Backing Diameter

2.05 in
52.07 mm

Da - Cup Frontface Backing Diameter

3.03 in
76.96 mm

Db - Cup Backface Backing Diameter

2.87 in
72.90 mm

Ab - Cage-Cone Frontface Clearance

0.07 in
1.78 mm

Aa - Cage-Cone Backface Clearance

0.05 in
1.27 mm

a - Effective Center Location³

-0.10 in
-2.50 mm

C90 - Dynamic Radial Rating (90 million revolutions)¹

4510 lbf
20100 N

C1 - Dynamic Radial Rating (1 million revolutions)²

17400 lbf
77400 N

C0 - Static Radial Rating

16500 lbf
73200 N

C_a90 - Dynamic Thrust Rating (90 million revolutions)³

3320 lbf
14800 N

K - Factor¹

1.36

e - ISO Factor²

0.43

Y - ISO Factor³

1.39

G1 - Heat Generation Factor (Roller-Raceway)

23.7

G2 - Heat Generation Factor (Rib-Roller End)

14.4

Cg - Geometry Factor

0.0758

In 1895, Henry. Timken, the founder of the Timken Company, invented a conical roller TIMKEN bearing in use of axle, it is Tapered Roller Bearings. Timken Bearings becomes the largest Tapered Roller Bearings Manufacture, it also enjoys high reputation in bearings field. it provides the professional Timken 22168 - 22325 Bearings, there are abundant Timken bearings stock in warehouse, if you need Timken 22168 - 22325 Bearings, welcome to your calling.
