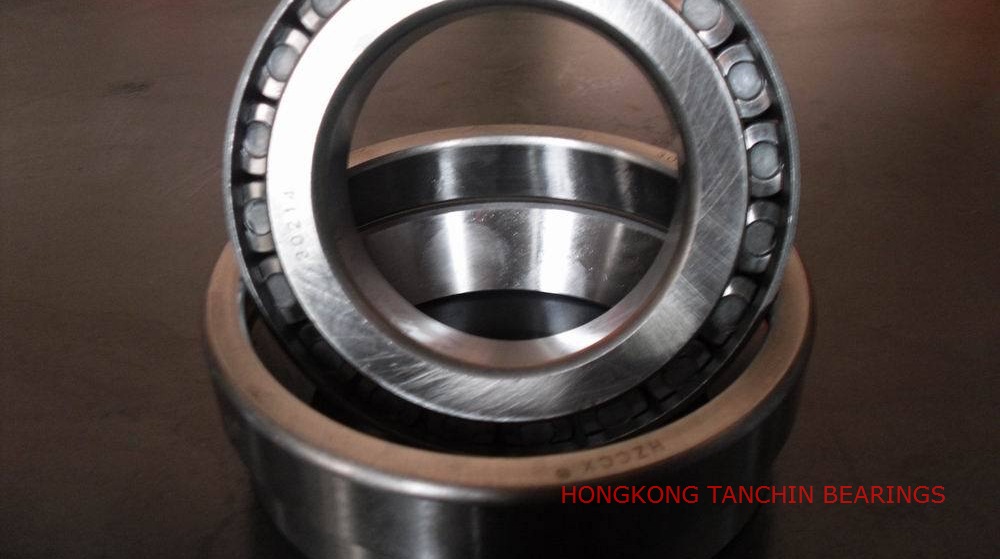

Timken 33891 - 33821D bearing
All our Timken 33891 - 33821D bearings ensure quality
Price :$1.08,please contact sales@tanchin.hk Timken 33891 - 33821D
  |
| Bearing Weight | 3.8966 lb
1.7675 Kg
|
| D - Cup Outer Diameter | 3.7500 in
95.250 mm
|
| d - Cone Bore | 2.0625 in
52.388 mm
|
| B - Cone Width | 1.1250 in
28.575 mm
|
| C - Double Cup Width | 2.0624 in
52.385 mm
|
| T - Bearing Width across Cones | 2.5000 in
63.500 mm
|
| Z - Number of Rollers Per Row | 18
|
| Ka - Locking Pin Diameter | N/A
|
| Kb - Locking Pin Depth | N/A
|
| R - Cone Backface "To Clear" Radius1 | 0.140 in
3.600 mm
|
| r - Cup Frontface "To Clear" Radius2 | 0.03 in
0.8 mm
|
| db - Cone Backface Backing Diameter | 2.60 in
66.00 mm
|
| Da - Cup Frontface Backing Diameter | 3.56 in
89.92 mm
|
| Aa - Cage-Cone Backface Clearance | 0.05 in
1.30 mm
|
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 | 7560 lbf
33600 N
|
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 | 50800 lbf
226000 N
|
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 | 13200 lbf
58600 N
|
| Ca90 - Dynamic Thrust Rating (90 million revolutions)4 | 4270 lbf
19000 N
|
| Y1 - ISO Factor3 | 0.97
1.45
|
| G1 - Heat Generation Factor (Roller-Raceway)5 | 52.5
|
| G2 - Heat Generation Factor (Rib-Roller End) | 18.5
|
| Cg - Geometry Factor6 | 0.091
|
|
In 1895, Henry. Timken, the founder of the Timken Company, invented a conical roller TIMKEN bearing in use of axle, it is Tapered Roller Bearings. Timken Bearings becomes the largest Tapered Roller Bearings Manufacture, it also enjoys high reputation in bearings field. it provides the professional Timken 33891 - 33821D Bearings, there are abundant Timken bearings stock in warehouse, if you need Timken 33891 - 33821D Bearings, welcome to your calling.
