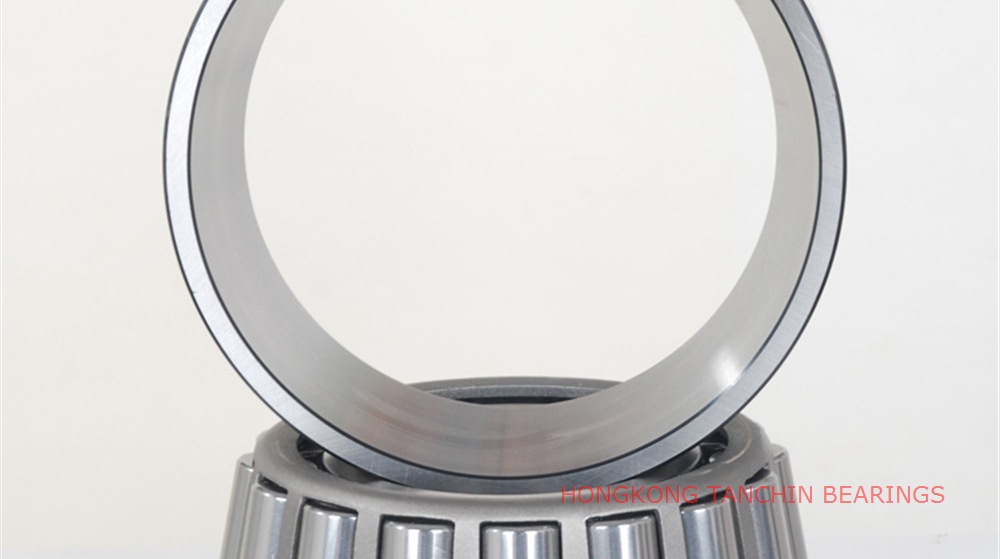

Timken 436 - 432D bearing

All our Timken 436 - 432D bearings ensure quality

Price :$1.08,please contact sales@tanchin.hk Timken 436 - 432D

Series 435
Cone Part Number 436
Cup Part Number 432D
Design Units Imperial
Bearing Weight 4.2588 lb
1.9318 Kg
Cage Type Stamped Steel
D - Cup Outer Diameter 3.7500 in
95.250 mm
d - Cone Bore 1.8125 in
46.038 mm
B - Cone Width 1.1772 in
29.901 mm
C - Double Cup Width 2.0000 in
50.800 mm
T - Bearing Width across Cones 2.4376 in
61.915 mm
Z - Number of Rollers Per Row 16
Ka - Locking Pin Diameter N/A
Kb - Locking Pin Depth N/A
R - Cone Backface "To Clear" Radius1 0.140 in
3.600 mm
r - Cup Frontface "To Clear" Radius2 0.03 in
0.8 mm
db - Cone Backface Backing Diameter 2.32 in
58.90 mm
Da - Cup Frontface Backing Diameter 3.46 in
87.12 mm
Aa - Cage-Cone Backface Clearance 0.06 in
1.50 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 7400 lbf
32900 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 49700 lbf
221000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 12900 lbf
57300 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)4 3600 lbf
16000 N
K - Factor1 2.05
e - ISO Factor2 0.59
Y1 - ISO Factor3 1.14
1.70
Y2 - ISO Factor4 1.70
G1 - Heat Generation Factor (Roller-Raceway)5 42.5
G2 - Heat Generation Factor (Rib-Roller End) 11.3
Cg - Geometry Factor6 0.0805


             In 1895, Henry. Timken, the founder of the Timken Company, invented a conical roller TIMKEN bearing in use of axle, it is Tapered Roller Bearings. Timken Bearings becomes the largest Tapered Roller Bearings Manufacture, it also enjoys high reputation in bearings field. it provides the professional Timken 436 - 432D Bearings, there are abundant Timken bearings stock in warehouse, if you need Timken 436 - 432D Bearings, welcome to your calling.
