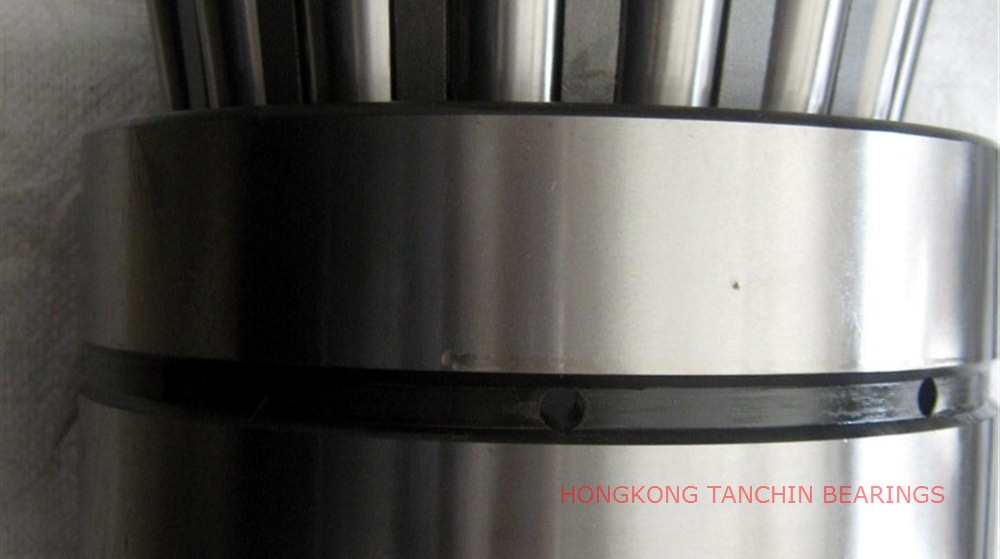

Timken EE234160 - 234221D bearing

All our Timken EE234160 - 234221D bearings ensure quality

Price :$1.08,please contact sales@tanchin.hk Timken EE234160 - 234221D

Series 234000
Cone Part Number EE234160
Cup Part Number 234221D
Design Units Imperial
Bearing Weight 194.1986 lb
88.0869 Kg
Cage Type Stamped Steel
D - Cup Outer Diameter 22.0000 in
558.800 mm
d - Cone Bore 16.0000 in
406.400 mm
B - Cone Width 2.4063 in
61.120 mm
C - Double Cup Width 4.1250 in
104.775 mm
T - Bearing Width across Cones 5.7499 in
146.047 mm
Z - Number of Rollers Per Row 42
Ka - Locking Pin Diameter N/A
Kb - Locking Pin Depth N/A
R - Cone Backface "To Clear" Radius1 0.250 in
6.400 mm
r - Cup Frontface "To Clear" Radius2 0.06 in
1.5 mm
db - Cone Backface Backing Diameter 17.13 in
435.10 mm
Da - Cup Frontface Backing Diameter 20.31 in
515.62 mm
Aa - Cage-Cone Backface Clearance 0.55 in
14.00 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 63300 lbf
282000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 425000 lbf
1890000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 110000 lbf
490000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)4 51600 lbf
230000 N
K - Factor1 1.23
e - ISO Factor2 1.06
Y1 - ISO Factor3 0.64
0.95
Y2 - ISO Factor4 0.95
G1 - Heat Generation Factor (Roller-Raceway)5 2780
G2 - Heat Generation Factor (Rib-Roller End) 448
Cg - Geometry Factor6 0.202


             In 1895, Henry. Timken, the founder of the Timken Company, invented a conical roller TIMKEN bearing in use of axle, it is Tapered Roller Bearings. Timken Bearings becomes the largest Tapered Roller Bearings Manufacture, it also enjoys high reputation in bearings field. it provides the professional Timken EE234160 - 234221D Bearings, there are abundant Timken bearings stock in warehouse, if you need Timken EE234160 - 234221D Bearings, welcome to your calling.
bearings brand

FAG － NSK － NTN － INA － NACHI － IKO － KOYO － FYH － ASAHI － RHP － STEYR － FAFNIR － SBC － TSUBAKI － KINGON － BARDEN － AET － GMN － MAC－ RIV － THK － DKF － MRC － IJK － ZKL － SNR － ASK － NMB － SNFA － TORRINGTON － SNF



please contact EMAIL :sales@tanchin.hk for any inquiry



dimensions Tapered Roller EE234160 - 234221D Bearings_TS Timken SPEC -Tancbearing

  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing
  • bearing EE234160 - 234221D bearing

please contact EMAIL :sales@tanchin.hk for any inquiry

 m:
75.19kg
Brand:
TIMKENBearing
C0r:
196000N
d:
406.400mm
D:
539.750mm
Cr:
241000N
Model:
EE234160/234213CD/X1S-234160
Category:
TaperedRollerBearings
B:
101.600mm
D:
558.800mm
Brand:
TIMKENBearing
Category:
TaperedRollerBearings
m:
90.77kg
B:
104.775mm
C0r:
196000N
Cr:
241000N
d:
406.400mm
Model:
EE234160/234221D/X3S-234160
B:
61.120mm
C0r:
2010000N
Model:
EE234160/234215
Brand:
TIMKENBearing
D:
546.100mm
Category:
TaperedRollerBearings
d:
406.400mm
Cr:
928000N
m:
40.88kg
Brand:
TIMKENBearing
D:
558.800mm
Category:
TaperedRollerBearings
Cr:
928000N
m:
40.3kg
B:
61.120mm
Model:
EE234160/234220
d:
406.400mm
C0r:
2010000N
