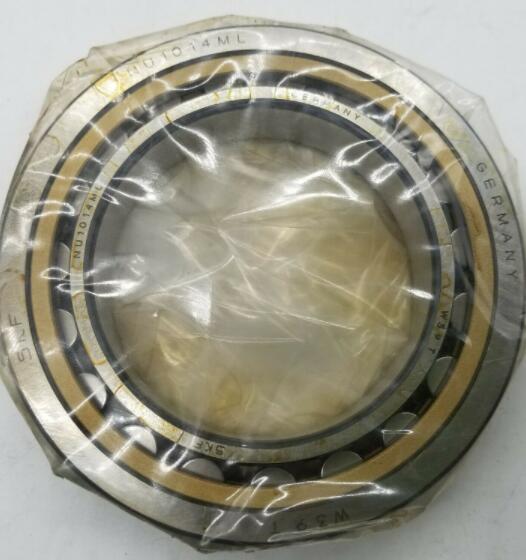

NEWS： SKF NU1014ML Single Row Cylindrical Roller Bearings
please contact sales@tanchin.hk for any inquiry
Brand new, sealed and ready to ship as soon as possible.
| Bore Diameter | 70 mm |
|---|---|
| Outside Diameter | 110 mm |
| Overall Width | 20 mm |
| Flanges | (2) Outer Ring |
| Bore Type | Cylindrical |
| Number of Rows | 1 |
| Internal Clearance | C0 |
| Ring Separation | O/R assembly separable I/R |
| Operating Temperature Range | Maximum of +300 °F |
| Dynamic Load Capacity | 12610 lbf |
| Static Load Capacity | 15060 lbf |
| Precision Rating | Not Rated |
| Lubrication Type | Non-Lubricated |
| Seal Type | Unsealed |
| Maximum RPM | 7000 RPM |
| Bearing Material | Steel |
| Cage Material | Brass |
| Finish/Coating | None |
| Closure Type | Open |
| Outer Ring Width | 20 mm |
| Fillet Radius | 1 mm |
| Series | 10 |
| Weight | 1.62 lbs |
