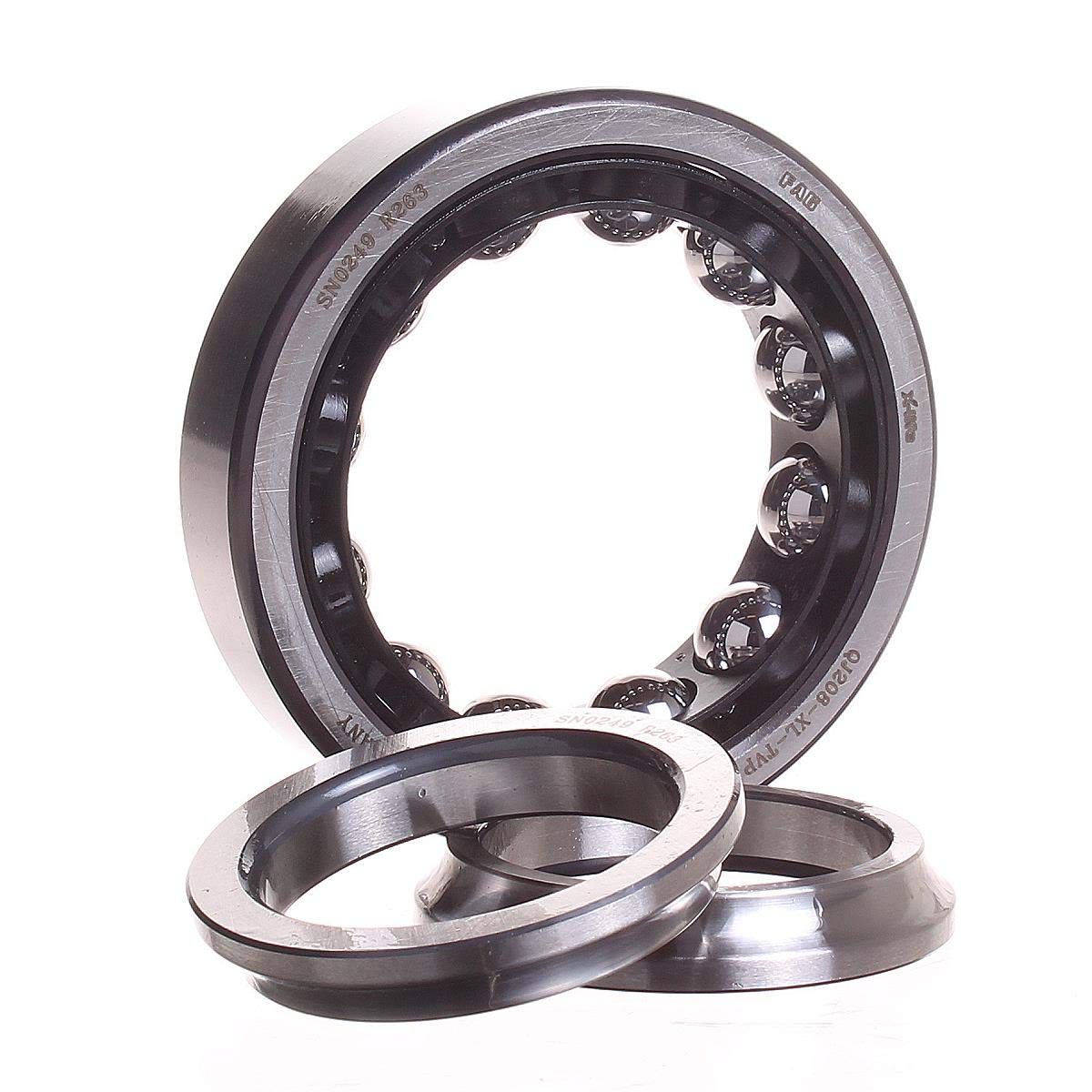

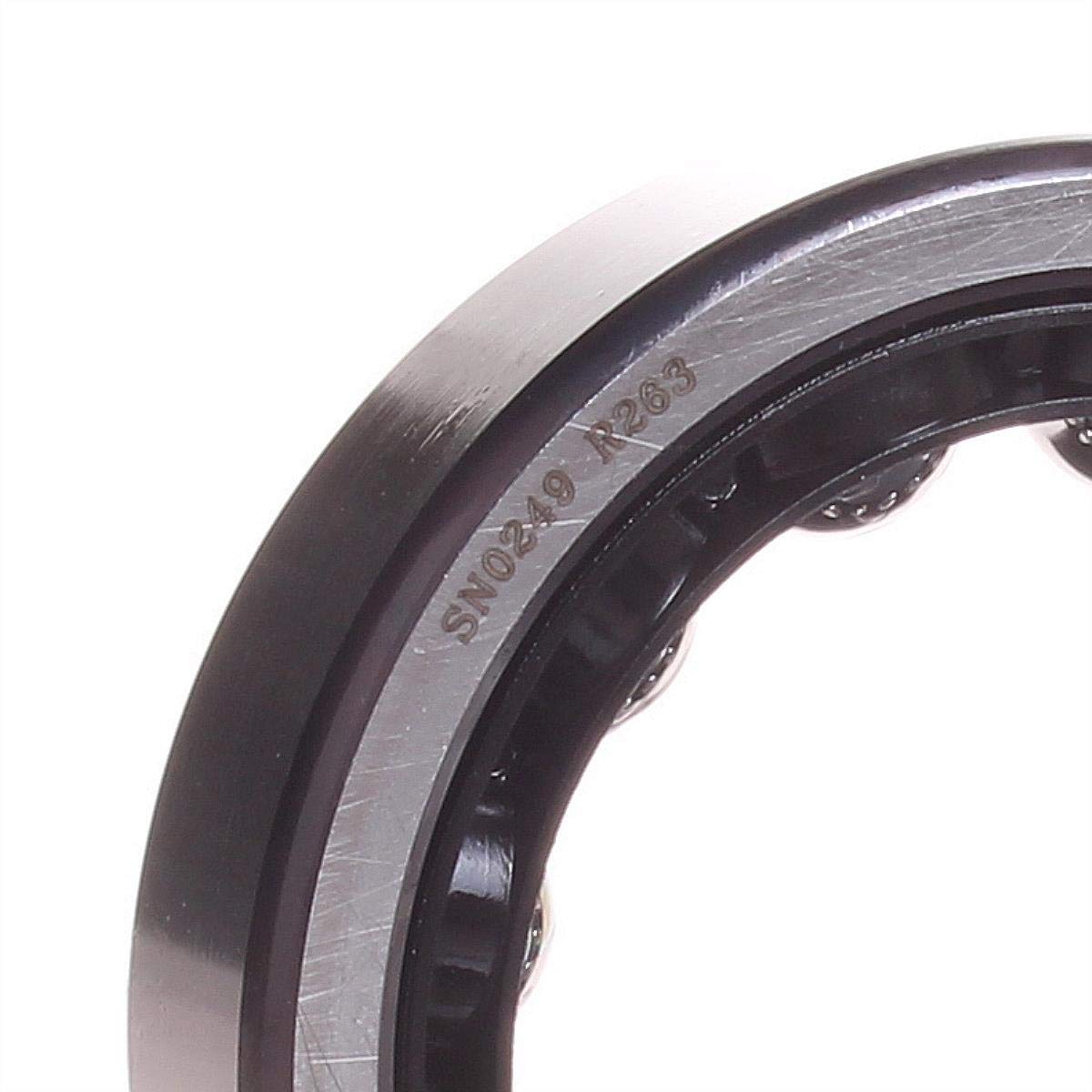

FAG QJ208TVP Angular Contact Ball Bearing, Single Row, Open, 35° Contact Angle, Polyamide/Nylon Cage, Normal Clearance, Metric, 40mm ID, 80mm OD, 18mm Width, 9500rpm Maximum Rotational Speed, 10400lbf Static Load Capacity, 12500lbf Dynamic Load Capacity

Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 40 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 12500 pounds

Item Diameter 80 millimeters
Item Weight 6.4 ounces
Material Nylon
Maximum Rotational Speed 9500 rpm
Measurement System Metric
Number of Items 1
Part Number QJ208-TVP
Specification Met Din 623-1 , Iso 281 , Iso 683-17 , Iso 199 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 10400 pounds
UNSPSC Code 31171531
Width 18 millimeters
