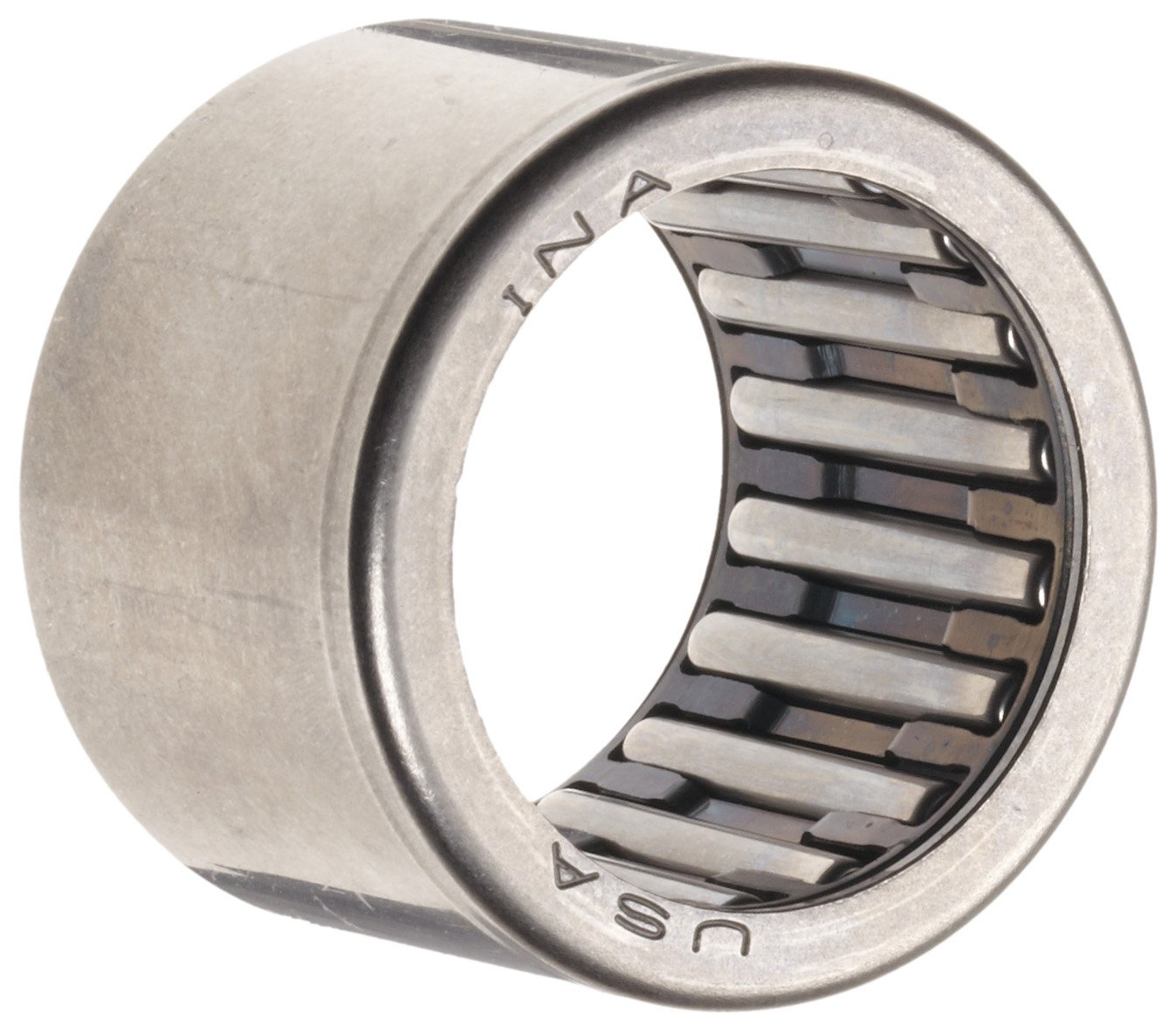

INA SCE108 Needle Roller Bearing, Caged Drawn Cup, Steel Cage, Open End, Inch, 5/8" ID, 13/16" OD, 1/2" Width, 17600rpm Maximum Rotational Speed, 2700lbf Static Load Capacity, 1830lbf Dynamic Load Capacity


Brand INA
Material Alloy Steel
Item Dimensions LxWxH 2.1 x 2 x 0.5 inches
Item Weight 4.54 Grams
Item Thickness 0.5 Inches
About this item
Drawn cup needle roller bearing for applications with high dynamic loads
Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
Meets standard ANSI/ABMA 18.2-1982 for quality assurance
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 5/8 inches
Brand Name INA
Dynamic Load Capacity 1830 pounds

Item Diameter 13/16 inches
Item Thickness 0.50 inches
Item Weight 0.160 ounces
Material Alloy Steel
Maximum Rotational Speed 17600 rpm
Measurement System Inch
Model Number SCE108
Number of Items 1
Part Number SCE108
Size Open
Specification Met ABMA
Static Load Capacity 2700 pounds

Width 1/2 inches
